Description

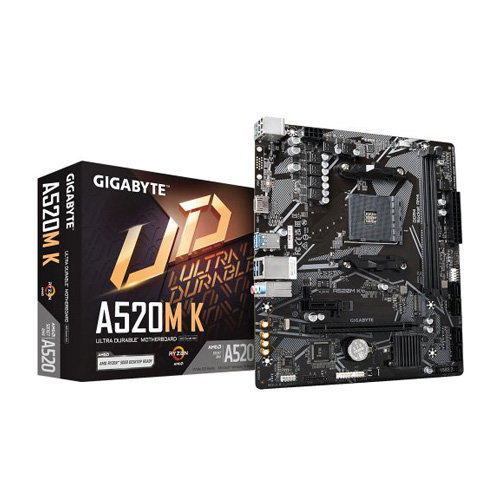

Gigabyte A520M K AMD A520 AM4 Motherboard for Ryzen Processors
The Gigabyte A520M K AM4 Micro ATX Motherboard is a budget-friendly and reliable foundation for AMD Ryzen desktop builds in Bangladesh. Supporting AMD Ryzen 5000, 4000, and 3000 series processors, it features dual-channel DDR4 memory slots, a high-speed PCIe 3.0 x4 M.2 slot, Realtek GbE LAN with bandwidth management, Smart Fan 5 technology, and anti-sulfur resistors for long-lasting performance.
Quick Overview
- •Socket: AMD Socket AM4
- •Chipset: AMD A520
- •CPU Support: AMD Ryzen 5000 / 4000 G-Series / 3000 Series Processors
- •Memory Slots: 2x DDR4 DIMM (Up to 64GB, 5100 MHz O.C.)
- •Storage: 1x NVMe PCIe 3.0 x4 M.2 Slot, 4x SATA 6Gb/s Ports
- •Networking: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
- •Form Factor: Micro ATX (22.6cm x 18.5cm)
- •Warranty: 3 Years Official Brand Warranty
| Brand & Model | Gigabyte A520M K (rev. 1.0) |
| CPU Socket | AMD Socket AM4 |
| Chipset | AMD A520 Chipset |
| Supported Processors | AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors |
| Memory Slots | 2x DDR4 DIMM Sockets (Dual Channel Architecture) |
| Max System Memory | Up to 64 GB (Single DIMM up to 32 GB) |
| Supported Memory Speeds | DDR4 5100(O.C.) / 4800(O.C.) / 4000(O.C.) / 3600(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Expansion Slots | 1x PCI Express x16 Slot (PCIe 3.0 x16), 1x PCI Express x1 Slot (PCIe 3.0) |
| Storage Interfaces | 1x M.2 Connector (Socket 3, M key, type 2240/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support), 4x SATA 6Gb/s Connectors |
| RAID Support | RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Display Output Ports | 1x HDMI 2.1 Port (Max resolution 4090×2160@60 Hz), 1x D-Sub (VGA) Port |
| USB Ports | 4x USB 3.2 Gen 1 Ports (Rear), 2x USB 2.0/1.1 Ports (Rear), 6x USB Ports via internal headers |
| Audio & LAN | Realtek Audio CODEC (7.1-channel High Definition Audio), Realtek GbE LAN Chip (1 Gbps) |
| Form Factor & Size | Micro ATX Form Factor (22.6cm x 18.5cm) |
| Warranty Coverage | 3 Years Official Brand Warranty |
Build a modern and cost-effective AMD system with the Gigabyte A520M K AM4 Micro ATX Motherboard. Built with Gigabyte’s signature Ultra Durable components, this motherboard offers exceptional stability, energy efficiency, and thermal management for daily office work, home productivity, and budget gaming PC setups.
Fast NVMe PCIe 3.0 x4 M.2
Features an onboard M.2 slot supporting up to 32Gb/s data transfer speeds, allowing you to maximize the potential of high-speed NVMe solid-state drives.
Smart Fan 5 Technology
Equipped with multiple thermal sensors and hybrid fan headers featuring Fan Stop to keep your system cool and whisper-quiet under light computing loads.
Realtek Gigabit LAN
High-speed Gigabit Ethernet controller with automatic bandwidth management ensures smooth online gaming, video streaming, and rapid network transfers.
Anti-Sulfur Resistor Design
Equipped with sulfur-resistant onboard resistors that prevent chemical damage caused by environmental factors, extending overall motherboard durability.
Explore more motherboards, processors, RAM modules, and PC components at Techno Fair. Purchase original products backed by official manufacturer warranty and reliable delivery across Bangladesh.
What is the price of Gigabyte A520M K AM4 Motherboard in BD?
The latest price for the Gigabyte A520M K AM4 Micro ATX Motherboard in Bangladesh is updated regularly on Techno Fair with 3 years official warranty support.
Does the Gigabyte A520M K support AMD Ryzen 5000 series processors?
Yes, it natively supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 series desktop processors on the AM4 platform.
Does this motherboard support NVMe M.2 SSDs?
Yes, it features an onboard PCIe 3.0 x4 M.2 slot supporting high-performance NVMe SSDs (Type 2240/2260/2280).
Looking for Gigabyte A520M K Motherboard Best Price in BD?
Order online today from Techno Fair for 100% genuine products with official warranty and fast doorstep delivery nationwide.
Visit Category Page: technofaire.com
